Freelander 2 Uprated Front Differential/Transfer Box Reconditioned 2 yr warranty
IS YOUR FREELANDER 2 WHINING / CRUNCHING FROM THE FRONT ?
Do you want your beloved Freelander to run smooth and quiet again?
We Can Help!
If your Freelander Power Transfer Unit (PTU) / transfer box / front differential is damaged we can supply you with an uprated reconditioned unit.
One of the biggest, most serious issues with the Freelander 2 Power Transfer Unit (PTU) / transfer box / front differential is damage occurring to the splines of the crown wheel which connect the unit to the gearbox. The crown wheel is not available as a new item and so most reconditioning cannot address this issue and most used units in circulation have suffered from some wear to these splines (hence, since used units are used for reconditioning the standard reconditioned unit will also have some wear on the splines). Our uprated Power Transfer Units (PTU) have brand new, strengthened splines fused to the crown wheel by a high tech procedure, making them stronger, giving no backlash and having a better fit and performance than the original Land Rover crown wheel – in fact it is so good we offer an extended two year warranty!
For more information please rear through the sections below.
PLEASE NOTE: This is an exchange unit and requires the return of your damaged Power Transfer Unit (PTU)/ transfer box / front differential.
There are two alternatives to receiving your reconditioned Power Transfer Unit (PTU) / transfer box / front differential:
Option 1. Reconditioning your unit for £845 incl VAT, plus shipping:
- Remove the Power Transfer Unit (PTU) from your vehicle;
- Drain the unit of oil;
- Package securely (well padded / bubble wrapped) in a sturdy box and securely taped up);
- Send us a message or call us to let us know the unit is ready for collection;
- Your unit will be collected by courier (covered in the shipping price) and delivered to us;
- Once we receive your unit we will inspect it to ensure it is reconditionable – generally it is reconditionable provided there are no cracks or holes in the casing;
- We will ship out an uprated reconditioned unit to you (covered in the shipping price), generally within one working day, and send you the tracking details;
- You will receive and fit your uprated reconditioned unit (it is advisable to also fit a new sleeve and associated seals at the same time – if you require these please send us a message with your Freelander chassis / registration number and we will send you a price);
- You are back on the road, enjoy!
Option 2. If you pay an additional £300 refundable surcharge:
- We will send you an invoice for the refundable £300 surcharge;
- Once the surcharge is paid we will ship out an uprated reconditioned unit to you (covered in the shipping price), generally within one working day, and send you the tracking details;
- You will receive and fit your uprated reconditioned unit (it is advisable to also fit a new sleeve and associated seals at the same time – if you require these please send us a message with your Freelander chassis / registration number and we will send you a price);
- You are back on the road, enjoy!
- Drain your damaged unit of oil;
- Package your damaged unit securely (well padded / bubble wrapped) in a sturdy box and securely taped up – you may be able to use the same box the reconditioned unit came in);
- Send us a message or call us to let us know the unit is ready for collection;
- Your unit will be collected by courier (covered in the shipping price) and delivered to us;
- Once we receive your unit we will inspect it to ensure it is reconditionable – generally it is reconditionable provided there are no cracks or holes in the casing;
- We will refund your £300 surcharge, normally within two working days of receiving your damaged unit.
WHAT HAS CAUSED MY POWER TRANSFER UNIT (PTU) / TRANSFER BOX / FRONT DIFFERENTIAL TO BE DAMAGED?
In most cases damage to your power transfer unit / transfer box / front differential is caused by mismatched tyres.
It is very important on a Freelander 2 drivetrain for the tyre sizes to be matched between the front and rear axles. The difference in tyre diameter, and thus the rolling radius of the wheel, causes slippage in the drivetrain, which is what they are designed to do off road if the wheels start to slip and this transfers drive to the other wheels, but if this is happening while driving in a straight line on a road it causes extra load to the entire transmission line, eventually resulting in rear differential and/or Power Transfer Unit failure. This constant strain can also affect the Haldex unit and gearbox if the situation continues.
Mismatched tyres can occur from:
- fitting different size profile tyres to the front of the car compared to the rear;
- having tyres of different makes or even different models of the same make fitted to the vehicle;
- putting new tyres on one end of the car but leaving the old worn tyres on the other;
- having different tyres pressures;
A difference of just 5mm in diameter dramatically increases the rotational differences between the front and rear axles, so it is imperative that the tyres are always matched – the same make, model, tread depth remaining and air pressure. Always change all 4 tyres at the same time, rather than trying to save a few pounds by changing the fronts and getting a few more miles out of the rears.
If all your tyres are matched then the failure is likely to have come about by something which is causing the wheels to rotate at different speeds, such as a sticking brake calliper or brake pad carrier sliders siezed.
IF YOU HAVE DAMAGE TO YOUR DRIVETRAIN PLEASE ENSURE YOU IDENTIFY THE CAUSE OTHERWISE YOU WILL REPLACE THE UNIT AND THE SAME DAMAGE WILL OCCUR AGAIN.
Warning: If your Power Transfer Unit (PTU) failed because of mismatched tyres, a sticking brake calliper, or any other external cause then you will need to correct this cause (replace the tyres / replace the calliper etc.), otherwise you will damage your replacement Power Transfer Unit all over again – and your warranty will not cover you because it will have been damaged by an external component!
HOW CAN I TELL IF MY POWER TRANSFER UNIT (PTU) / TRANSFER BOX / FRONT DIFFERENTIAL NEEDS REPLACING?
A problem with the Freelander 2 Power Transfer Unit (PTU)/ transfer box / front differential will generally show itself in two different ways:
- You may hear a whining noise from the front of your Freelander, a little like road noise, which tends to get louder when you place the Freelander under load, such as when you are accelerating. This is generally due to a worn bearing inside the unit from the strain on the drivetrain (i.e. mismatched tyres, sticking brake calliper etc.), the metal shards from the bearing will then be circulating around the inside of the unit (and can generally be seen in the oil) which can cause further damage to the internal components.
- You lose the all wheel drive (AWD) but have no error messages (this could have been proceeded by some banging from the front of the vehicle, which can also resonate down the drivetrain to appear to be coming from the rear), so when you need grip the front wheels start spinning and you just skid rather than get out of that muddy field! Please note, this could also occur if you have a problem with your rear differential or Haldex. Putting the Freelander on a ramp with all four wheels in the air and running it should show you if you are getting drive to the rear. This is a very common issue which occurs when the drivetrain has been put under strain (from mismatched tyres, sticking brake calliper etc.) and is generally due to the splines on the sleeve which sits between the Power Transfer Unit and the gearbox wearing, and hence causing them not to engage fully with the driveline components – the tell tale sign of this happening is the presence of rusty oil residue between the mating surfaces of the gearbox and the PTU. In this situation you will also need to replace the sleeve and associated seals – please message us with your chassis / registration number for a price – and ensure you inspect the shaft of the gearbox for any damage to the splines when you replace the Power Transfer Unit.
If you are unsure if your Power Transfer Unit is damaged, or what the cause of your issues are, you are welcome to bring your vehicle to us for inspection and we will diagnose the problem and the cause for you.

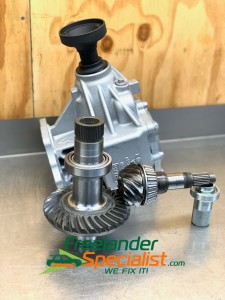

WHAT IS AN UPRATED RECONDITIONED POWER TRANSFER UNIT / TRANSFER BOX / FRONT DIFFERENTIAL?
When a strain is placed on the drivetrain, which occurs when you have mismatched tyres or a sticking brake calliper for example, this can cause the splines of the pinion on the Power Transfer Unit (PTU) to fold. The splines then do not sit tightly in the sleeve which connects the PTU to the gearbox – the tell tale sign of this happening is the presence of rusty oil residue between the mating surfaces of the gearbox and the PTU. Eventually this damage to the splines will result in your vehicle not transferring drive to the rear wheels as the splines will not be engaging and operating the gears in the PTU which transfer drive to the rear. If you continue to drive the vehicle in this condition may cause irreparable damage to both the PTU and the gearbox. The PTU input shafts are not available to purchase, and hence, most reconditioned Power Transfer Units contain a used input shaft which may already have suffered a significant amount of wear to the splines.
At FreelanderSpecialist we have commissioned our engineers to come up with a stronger, more durable solution. The uprated splines:
- Are made out of a much stronger steel than the original, which means they will not suffer from the folding effect;
- Are fully fused, using the highest technology, to the shaft all the way through at the wider point of the shaft, which means they are as solid as a single piece;
- Give no backlash on the splines and have a better fit to the sleeve than the original;
- In our tests they offer you better all wheel drive performance and response.
- Offer you greater longevity than the original splines and protect the gearbox from unnecessary damage.
In addition to uprated, stronger splines, our reconditioned Power Transfer Unit (PTU) / transfer box / front differential is fitted with all new bearings and seals.
PLEASE NOTE: If the there is damage to other parts of the unit other than the bearings, the seals and the splines your Power Transfer Unit (PTU) / transfer box / front differential will not be suitable for reconditioning. In this instance we should be able to supply a replacement core unit to recondition, however this will incur the £300 surcharge. Generally the only time this is an issue is if there are cracks or holes in the casing or damage to the gears.
SHOULD I CHANGE MY TYRES?
The most likely cause of Power Transfer Unit (PTU) / transfer box / front differential damage is a mismatch in tyres. If you do not address this issue you will experience the same damage all over again.
Please ensure your tyres are all matched, they should be the same:
- Make
- Model
- Size
- Tread Depth Remaining and
- Air Pressure
CAN YOU FIT MY UPRATED POWER TRANSFER UNIT / TRANSFER BOX / FRONT DIFFERENTIAL FOR ME?
Certainly we can fit your Power Transfer Unit (PTU) / transfer box / front differential for you, and we can remove, recondition and refit it all in the same day!
Take away all the hassle of getting your Freelander back on the road, bring it to us and we will:
- Supply an uprated reconditioned power transfer unit / transfer box / front differential;
- Fit your uprated reconditioned power transfer unit / transfer box / front differential;
- Fit a new sleeve and seals if required;
- Fill your power transfer unit / transfer box / front differential with the correct oil;
- Fill your gearbox with the correct oil – so you get the benefit of a gearbox oil change at the same time;
- Check your drivetrain for any other issues which may affect your newly fitted power transfer unit / transfer box / front differential.
- and have you back on the road again in no time!
Please send us a message with your chassis / registration number for an accurate quotation. As a guide, for an automatic gearbox it is approximately £1,400 including VAT; and for a manual gearbox it is approximately £1,265 including VAT.
If your car does not drive and you need to get it to us to fit your reconditioned power transfer unit / transfer box / front differential why not try:
- Phoning your breakdown recovery service, if you have one. These will sometimes transport your car for free, or at a reduced rate.
- Sending us a message and we will arrange to transport your car to us for a cost of £2.00 per mile (calculated one way only to IP26 4RH). We can collect from anywhere in Europe (ferry crossings will be charged additional where applicable).
The cost of supply only for the reconditioned power transfer unit / transfer box / front differential, excluding shipping or fitting, is £845 incl. VAT.
DO I NEED TO RETURN MY DAMAGED POWER TRANSFER UNIT / TRANSFER BOX / FRONT DIFFERENTIAL TO YOU?
The quoted price for the uprated Power Transfer Unit is valid only if you return your damaged unit to us and it is reconditionable (generally it is recondition able if there are no cracks or holes in the casing or damage to the gears). If you do not wish to return your damaged unit to us, or your unit is not reconditionable, there is a £300 surcharge (invoiced separately).
The shipping price includes the cost of shipping your damaged power transfer unit / transfer box / front differential to us, and shipping the uprated reconditioned unit to you. We will organise the courier, all you have to do is tell us when it will be ready to be collected.
DO YOU SHIP WORLDWIDE?
Yes we do. The following shipping prices include shipping your damaged power transfer unit / transfer box / front differential from you to our workshops, and your uprated reconditioned unit from our workshops to you:
- UK Shipping £35
- European Shipping £95 (estimate – see below*)
- Australia / USA / Canada £165 (estimate – see below*)
- Rest of The World Shipping £215 (estimate – see below*)
*Please note, some remote areas may be subject to a shipping surcharge. If your country / area may be considered remote please contact us with your address for a shipping quotation.
WHAT IF SOMETHING GOES WRONG?
We don’t like things going wrong, and you certainly wouldn’t! Quality is important to us, but in the event that something does go wrong you have our
2 year Unlimited Mileage Warranty
Our warranty covers you for a replacement power transfer unit / transfer box / front differential in the event of any failure of a component due to faulty parts or workmanship.
IMPORTANT: The warranty covers you for failure of any internal component due to faulty parts or workmanship. Please ensure the original cause of the failure is identified and rectified, as an external cause is not covered by the warranty.
WHAT IS THE PROCESS FOR PURCHASING AN UPRATED RECONDITIONED POWER TRANSFER UNIT (PTU)?
There are two alternatives to receiving your reconditioned Power Transfer Unit (PTU) / transfer box / front differential:
- If you pay the listed price plus shipping:
- Remove the Power Transfer Unit (PTU) from your vehicle;
- Drain the unit of oil;
- Package securely (well padded / bubble wrapped) in a sturdy box and securely taped up);
- Send us a message or call us to let us know the unit is ready for collection;
- Your unit will be collected by courier (covered in the shipping price) and delivered to us;
- Once we receive your unit we will inspect it to ensure it is reconditionable – generally it is reconditionable provided there are no cracks or holes in the casing;
- We will ship out an uprated reconditioned unit to you (covered in the shipping price), generally within one working day, and send you the tracking details;
- You will receive and fit your uprated reconditioned unit (it is advisable to also fit a new sleeve and associated seals at the same time – if you require these please send us a message with your Freelander chassis / registration number and we will send you a price);
- You are back on the road, enjoy!
- If you pay an additional £300 refundable surcharge (invoiced separately – please request this option at checkout or by message after checkout):
- We will send you an invoice for the refunadable £300 surcharge;
- Once the surcharge is paid we will ship out an uprated reconditioned unit to you (covered in the shipping price), generally within one working day, and send you the tracking details;
- You will receive and fit your uprated reconditioned unit (it is advisable to also fit a new sleeve and associated seals at the same time – if you require these please send us a message with your Freelander chassis / registration number and we will send you a price);
- You are back on the road, enjoy!
- Drain your damaged unit of oil;
- Package your damaged unit securely (well padded / bubble wrapped) in a sturdy box and securely taped up – you may be able to use the same box the reconditioned unit came in);
- Send us a message or call us to let us know the unit is ready for collection;
- Your unit will be collected by courier (covered in the shipping price) and delivered to us;
- Once we receive your unit we will inspect it to ensure it is reconditionable – generally it is reconditionable provided there are no cracks or holes in the casing;
- We will refund your £300 surcharge, normally within two working days of receiving your damaged unit.
Please ensure we have your email address and telephone number when ordering.
PAYMENT
We accept almost all forms of payment (who does not want to get paid!) including:
Paypal
Credit / Debit Cards
AMEX
BACS
Cash on collection
But no Tesco Club Points I’m afraid!
Shipping
We aim to ship out stock items within 1 working day whenever possible.
For drivetrain units which are reconditioned to order we aim to ship within 1 to 3 working days whenever possible.
For reconditioned engines, we always recondition these to order and the process takes approximately 2 weeks.
Please check the listing details for more information.
If you would like a firm shipment date, or have a specific deadline you need to meet, please contact us and we will do our best to get your items to you on time.
We ship worldwide – provided we can get a courier to take it there, we will ship it there!
Hallo,
Ich habe ein freelander 2 150ps manuel getriebe.
Beim vorderen diff ist die Eingangswelle locker/ bewegt sich.
Ich habe mir jetzt eine 44mm 12kant nuss bestellt und wollte die Mutter etwas anziehen damit das Spiel in den Lagern weniger wird. Aber ich schaffe es nicht diese Mutter zu bewegen. Habe es mit 1m Stange versucht.
Mit wie viel Nm wird diese schraube angezogen?
Ist die Mutter eventuell gesichert / gekontert?
Hello Halit,
Unfortunately in this situation the bearing has gone and no matter how much tightening you do to the nut it will make no difference. You will need to replace the unit. We can supplky uprated reconditioned units with strengthened splines if required.
Bedauerlicherweise ist in dieser Situation das Lager defekt und egal, wie fest Sie die Mutter anziehen, es macht keinen Unterschied. Sie müssen das Gerät austauschen. Bei Bedarf können wir verbesserte, überholte Einheiten mit verstärkten Keilverzahnungen liefern.
All the best,
Sue
sue@freelanderspecialist.com
hello again sue i hope you and norbert are keeping well this is paul in slovenia could you tell me please is it possible to post a reconditioned ptu to kranj in this country wish you were here ha ha ps irish paul the fisherman
Hi Paul,
We are very well, thank you. Great to hear from you! Yes, we can certainly post a reconditioned PTU to Slovenia for you. I will email you a quotation.
All the best
Sue
HI SUE HOW DO I MAKE PURCHASE can you send me invoice freelander 2 auto td4 VO10 HYA
HI SUE STILL NO E MAIL TRIED NO ON WHATS APP SAYS NUMBER IS INVALID THIS SITE IS DIFFICULT AM SERIOUSLY STUCK IN MOUNTAINS
Hi Paul,
I have tried sending it from a different email address, let me know if you get it. If you let me have your phone number – or email me at theteam@freelanderspecialist.com – I will get the info. to you.
All the best,
Sue
HI SUE GOT INVOICE THANKS MY WIFE WILL RING YOU ON MON MORN TO ARRANGE
Thank you Paul, I have spoken to your wife.
All the best,
Sue
hi sue my wife in england will ring you today to do payment the address for shipping is AUTOMEHANIKA BOKALJ, SIMON BOKALJ S.P , POLICA 18. 4220 NAKLO contact number for delivery is 00386 51 662 180 is the required oil with the unit thanks paul
Thank you Paul, all sorted I will email you the tracking number.
All the best,
Sue
Hi I’m looking to ship my car to you or have a front differential shipped to me, whatever the best, and most practical, td4, YK09LYT
Hi Alan,
I have sent you an email with a quote for each option. The nice thing about the Freelander coming to us is we can check it over to ensure we pick up the cause of the damage to the unit, as there is generally an external cause and if this is not rectified you have have the same issues all over again.
All the best,
Sue
theteam@freelanderspecialist.com
HI SUE AND NORBERT I NOW NEED RECON PTU AND SEALS ETC IN KRANJ SLOVENIA MY PHONE WILL NOT CONNECT ONLY ON WHATS APP DO YOU HAVE WHATS APP NUMBER ???
Hi Paul,
Apologies for the delay in responding, it was Nobert’s Birthday so we had a couple of days off – unchained him from the Workshop for once!
Yes, our WhatsApp number is +44 780 9575 421. I will email you an invoice and payment methods.
All the best,
Sue
Updated with model details I live in NZ
I have a 2008 Freelander 2 i6 and do not have 4WD
All tyres recently replaced
Noise from front end
Suspect PTU failure
Will you ship to NZ?
Hi David,
Thank you for your enquiry.
Yes, we can ship a PTU to New Zealand – do you also need the sleeve and the seals? If so, I will need your chassis number.
I will send you a quotation by email.
Generally you can tell if the issue is the PTU as you would expect to see some rust coloured oil residue around the sleeve where the PTU connects to the gearbox.
All the best,
Sue
theteam@freelanderspecialist.com
+44-780-9575-421
I live in NZ
I do not have 4WD
All tyres recently replaced
Noise from front end, so suspect PTU failure
Will you ship to NZ?
Hi there.
I have a Freelander 2 – SE TD 4 and I’m wondering do you need a transfer box from the same model or can a S TD4 be used etc and what models do u have in stock.
Many thanks Robbie
Hi Robbie,
For the Freelander 2’s you can use any transfer box that comes out of a 2.2 diesel (SD4 or TD4) – there have been super sessions but all will fit. You cannot put a transfer box from the 2.0 litre petrol Freelander, these are different. If you are buying a used transfer box make sure the splines, which connect it to the gearbox through a sleeve, are not folding.
All the best,
Sue
0780 9575 421
Olá,
esstou com um problema de vazamento de oleo de transferencia entre transmissão e transferencia. Freelander 2 chegou em minha oficina com problemas de ruido da transferencia, fizemos o reparo dela, porem ela persiste em vazar oleo entre elas onde tem a manga que faz a ligação. Duvidaes que tenho… A 1º a manga que liga uma na outra tem lado de encaixe? 2º o anel (plastico) que fica junto com a manga que liga transmissão com transferencia, tem qual função?
Muito Obrigado pela atenção.
Hello Ádamo,
Yes, the sleeve has a correct fitting side – on a manual sleeve the flat end goes into the power transfer unit.
There is no plastic ring; on the manual sleeve there is a metal cir clip (which stops the sleeve being pushed too far onto the shaft) and on the automatic there is a seal (which stops the oil from leaking out).
There are a number of reasons why you may have a leak around the sleeve. It could be that the seal on the power transfer unit is not fitted correctly and hence is leaking. When you removed the power transfer unit did you check for folding on the splines and sleeve? Did you fit a new sleeve and associated seals? If there is folding to the splines on the power transfer unit (a common issue) then oil will leak. You would need to replace the unit with one which has had the splines replaced.
Sim, a luva tem um lado de encaixe correto – em uma luva manual, a extremidade plana entra na unidade de transferência de energia.
Não há anel de plástico; na luva manual há um anel de metal (que impede que a luva seja empurrada demais no eixo) e na automática há uma vedação (que impede que o óleo vaze).
Há uma série de razões pelas quais você pode ter um vazamento ao redor da manga. Pode ser que a vedação na unidade de transferência de energia não esteja instalada corretamente e, portanto, esteja vazando. Quando você removeu a unidade de transferência de energia, você verificou se há dobras nas ranhuras e na manga? Você colocou uma nova luva e vedações associadas? Se houver dobras nas ranhuras da unidade de transferência de energia (um problema comum), haverá vazamento de óleo. Você precisaria substituir a unidade por uma que tenha as ranhuras substituídas.
All the best,
Sue
+44-780-9575-421
Olá, o anel plastico que eu me referia é de part number 7H469A, você saber qual a função dele? Quando removi a transferencia o anel 7H469A estava com muita avaria e não conseguimos identificar onde fica alojado e como é colocado na hora de montar, estava com tanta avaria que não conseguimos identificar onde vai alojado.
Obrigado pela atenção
Hello Ádamo,
That is the left hand outer driveshaft seal, Land Rover part number LR003155.
Essa é a vedação do eixo de transmissão externo esquerdo, número de peça Land Rover LR003155.
All the best,
Sue
Hello,
I’m from France, sorry for my english. I have a freelander 2 TD4, and last month I heard noise as creack looks coming from the rear of the car. So we thought about Haldex or rear differential issue. We change oil, filter of Haldex and differential’s oil. The creacks disappears and the car looks normal working, but last week-end I realized the rear weels no longer driven and the drive shaft did not rotate. There is no default alarm. Do you have an idea of the issue? Do you think the PTU is KO. The car drive normally exept is not a 4×4.
Thank you for your advices.
Best regards
Hello Eric,
Your English is very good!
Yes, this could be a PTU issue. If you check under the car, where the PTU joins to the gearbox, is there any rust coloured oil residue there? If so, then the splines on the shaft of the PTU will have folded and hence be slipping in the sleeve, thus giving you no drive to the rear wheels.
If this is the case then we can supply you with a reconditioned uprated PTU whereby the splines have been machined in a stronger metal.
All the best,
Sue
+44-780-9575-421
theteam@freelanderspecialist.com
Hi there,
My rear diff needs replacing – can i drive the vehicle until the work’s done?
Also, the tyre tread difference is currently 5.0mm on the front wheels and 3.5mm on the back. Is that enough to cause the diff to have broken?
Hi Adelaide,
If the rear differential is just whining then you should be fine to drive it until the work is done, it will just get louder and louder.
However, what is more urgent is the issue with your tyres. Having the tyres with more tread depth remaining being fitted to the front could have caused the damage. If all your tyres are the same make and model then we would advise swapping the front wheels to the rear as this is less likely to cause any more damage.
All the best,
Sue
hi,
is the freelander 2 transmission system the same as the evoque? i have an evoque that makes a clacking noise and feels jolty when cornering. it feels/sounds like it is coming from the rear.
with the rear end jacked up, handbrake off, turning the propshaft by hand is also jolty/squeaky.
any ideas?
thanks,
Hi John,
Some of the Evoque’s have the same transmission system as the Freelander 2. If yours is the same as the Freelander 2 then the things to check are the Haldex Active-on-demand and the sleeve which sits between the power transfer unit and the gearbox – if there is any rust coloured oil residue coming from this sleeve then you issue is with the power transfer unit.
We can supply both reconditioned power transfer units and reconditioned Haldex units.
The important thing is to determine the cause of the damage, in most cases this is mismatched tyres, all tyres should be the same make, model, size, tread depth remaining and air pressure.
All the best,
Sue
0780 9575 421
thanks for the reply. i am not sure if it is the same, it’s a 2013 2.2 auto. i have ascertained that the ‘joltiness’ is at the front of the propshaft so it’s looking like the PTU is at fault. i will get under it again to see if there are signs of rust coloured oil between the gearbox and PTU.
thanks,
Hi John,
Yes, it is highly likely it is the same. If you do have the rust coloured residue then you will need to remove the PTU and check it has not also damaged the splines on the gearbox.
All the best,
Sue
0780 9575 421
Sorry to bother you again but before i go any further, can you briefly describe how to diagnose step by step where the noise/jolting is coming from? It would be much appreciated before i start taking things apart!
The noise seems to be from the rear but the jolting is hard to tell where. It is only on cornering. If i take out the Haldex fuses will that eliminate the rear axle or can the haldex be stuck ‘on’?
I don’t want to change the wrong part!
Hi John,
The first thing to do is to check the sleeve which connects the front power transfer unit to the gearbox to see if you have any rust coloured oil residue from there. If you do then you definitely have an issue with the power transfer unit; you may also have an issue with the gearbox, Haldex and rear differential, but at this point you know you definitely have a power transfer unit issue.
The next thing to do is to put it on diagnostics to see what fault codes you are getting. A Haldex issue will generally result in either a communication code, meaning the Haldex issue or wiring has the problem; or an oil pressure / pump code, which means it is the Haldex Active-on-demand unit itself.
The important thing is to determine the cause of the damage. This is usually mismatched tyres or a binding brake.
All the best,
Sue
0780 9575 421
Many thanks for the guidance. Certainly will need a PTU and tyres.
Hi John,
We can help with the PTU, we supply reconditioned units – if there was rust coloured oil residue at the sleeve, unfortunately your existing PTU will not be reconditionable (we cannot get those shafts and that is where the damage is) so you would incur the surcharge. A reconditioned PTU is £545 plus £200 surcharge including VAT. UK shipping is £15 (if you are outside the UK please let me know and I will get a price for you) or we can fit is for you in a day.
All the best,
Sue
0780 9575 421
Hi I have a bearing noise which is coming from the transfer unit. Taking out the fuse for the Haldex unit has reduced that by quite a bit if not altogether. Ive got it booked in to be replaced but by doing this is it going to cause as much damage or help reduce?
Thank you for any information.
Hi John,
Generally the cause of transfer unit damage is mismatched tyres. Are all your tyres the same make, model, size, tread depth remaining and air pressure?
With the front transfer unit you will need to replace it as it can cause significantly more damage if you continue to drive it with a bearing noise (unlike the rear differential which normally just gets louder until you cannot bear it!) However, you need to find the cause of the damage and make sure that is also rectified, otherwise you will replace the transfer unit and do the same damage again to the replacement. As I have said, the most common cause of such damage is mismatched tyres.
Removing the fuse will have taken the strain off the transfer unit but it will not halt the damage.
All the best,
Sue
0780 9575 421
Hi thank you for the reply. I’ve got it booked in for the repair and I believe it was mismatches tyres as when I bought it I had them replaced along with having the rear diff replaced, but I think the damage had already started and gradually got worse over time.
Hi John,
Yes, I think you are right, if the rear diff had already sustained damage then it certainly does sound like a mismatched tyre issue and the power transfer unit had already been damaged but not enough for it to be noisy.
All the best,
Sue
i havea 2002 td4. automatic. do you do any unrated components? i woulkd like to do some serious offroading and would like to strenthen things a wee bit. also wondering about any control arms and longer axels if they are available? would like todo a proper lift
Thanks
Hello Mr Pedersen,
Unfortunately we do not tend to do the 4×4 modifications such as lift kits etc. It would be best to try somewhere like Muddy Mods – https://www.muddymods.com/collections/freelander-1 who specialise in that type of thing.
All the best,
Sue
Hi Sue,
my Freelander certainly has a broken front diff (and definitely matched tyres; they are a year old and I checked). There was a slight noise coming from the front diff about a year ago that my mechanic pointed out (at that time I had to exchange the rear diff), and it got very suddenly very loud about three months ago. I did order a new front diff, but it’s taking it’s sweet time to arrive here in Germany.
Do you have any idea on how safe it is to drive? My mechanic was unsure if it would impact the cardan joint (not sure if it’s the correct English term). Googling that made me quite nervous about using my Freelander every day at 90mph on the Autobahn.
I would be ever so grateful if you could tell me your opinion on driving with a broken front diff.
Thank you for your help,
Maria
Hi Maria,
Is it just making a bearing sound or did it make a bang or is it feeling a little like sticking brakes on the rear wheels? You can do quite a lot of damage from a faulty front diff (unlike the rear diff which does not tend to cause any other harm). If at all possible I would recommend you do not use it until the replacement diff is fitted.
All the best,
Sue
+44-780-9575-421
Hi Sue,
it is making a bearing noise and I do occasionally feel like the car doesn’t accelerate as it should in first or second gear. That might be my imagination, though, as it does not always feel like this and, coupled with the broken rear diff last year, I am constantly observing anything my car might do …
I might try borrowing a car and hope for the best considering all the damage I might have done already.
Thank you very much for your help,
Maria
Hi Maria,
If it is just making a bearing noise that is a good sign. It would, however, be wise not to use it to ensure no further damage is done. It sounds like the damage may have been done before the tyres were replaced and because you have nicely matched tyres it has taken this long for it to get too bad.
All the best,
Sue
+44-780-9575-421
Hi Sue,
we spoke on email a few months ago. Have intermittent grinding/drumming/whirr noise coming form rear.
Turns out its form rear diff where its connected at haldex to main shaft from engine.
BUT this is a new haldex and diff had bearings replaced last year.
Ive been hearing this rear noise inside the car occasionally when under load (not over run) today placed a microphone there (chassis ears) and get same grinding-drumming-whirr as I hear inside -not this is intermittent but getting more frequent on long drives.
HOWEVER fro good measure I also placed a microphone one at front passenger side on the alloy casing of what I think is the front diff (the front passenger wheel drive shaft goes into it)
I can hear the engine tick over but over the top of that its is making a proper crashing rattling racket even when not in gear driving about. Gets worse in gear. You can hear gear changes a little but as you accelerate this crashing rattling noise gets massively load over the micro phone.
I have been hearing some noise from the front thinking it was the engine labouring but now think what Ive been hearing is the front diff – or maybe flywheel?
CAN the rear noise be vibration from faulty front diff or flywheel passing vibration down main shaft and causing the noise at the back too? hence two noises one problem?
Thanks as always
Hi Ian,
Yes, if you have damage to the power transfer box at the front then the noise can resonate down the prop shaft and appear to be coming from the rear. What condition are your tyres in, are they all the same make, model, size, SAME TREAD DEPTH REMAINING and same air pressure?
All the best,
Sue
0780 9575 421
Dear Sir
REF: Freelander 2 YK60 XUV, Mileage 65000. I have just noticed a whining noise at the rear of the car. This is my second Freelander 2 and the same noise came up on my first Freelander 2 at 63500 miles. I have been informed this is a common fault for pre 20I1 Freelander 2 due to over tightening of the bearings and Land Rover suggested modifications. I am due trade in my car in June 2018 will there be any issues if I drive the Freelander for another 1500 miles. Your professional advice would be much appreciated. Kind regards and look forward to hearing from you. Tony
PS Used same Goodyear Tyres as supplied by Land Rover
Hello A L Horton,
The early Freelander 2’s do have a weak pinion bearing, however this issue still normally occurs due to mismatched tyres – the tyres should be the same make, model, size, have the same tread depth remaining and the same air pressure.
We have never known a Freelander 2 rear differential explode (it has happened with the Freelander 1’s!) so you should be safe to continue driving it. The noise will just get louder and louder until you cannot bear it!
All the best,
Sue
0780 9575 421
Thank you Sue for your advise, I’m going to check this point as soon as possible.
Best regards
It’s a pleasure Eric.
Hi,
Which oil is recommended for the power transfer unit? I am the owner of 2007 Freelander 2 HSE. Thank you in advance.
Best regards,
Adel
Hi Adel,
It is LR003137, obtainable from Land Rover or ourselves of course!
All the best,
Sue
0780 9575 421
